YHZS series mobile concrete mixing plant

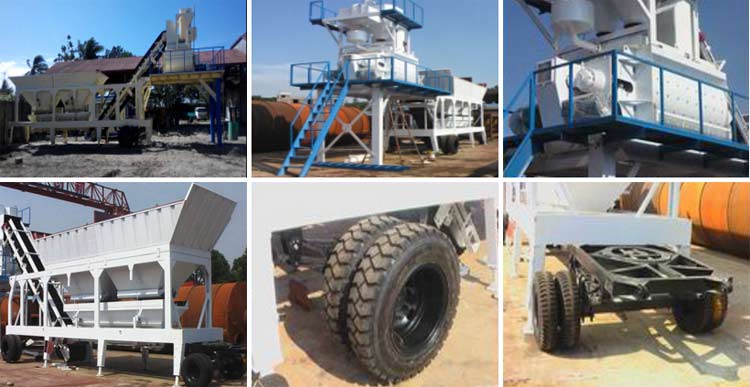

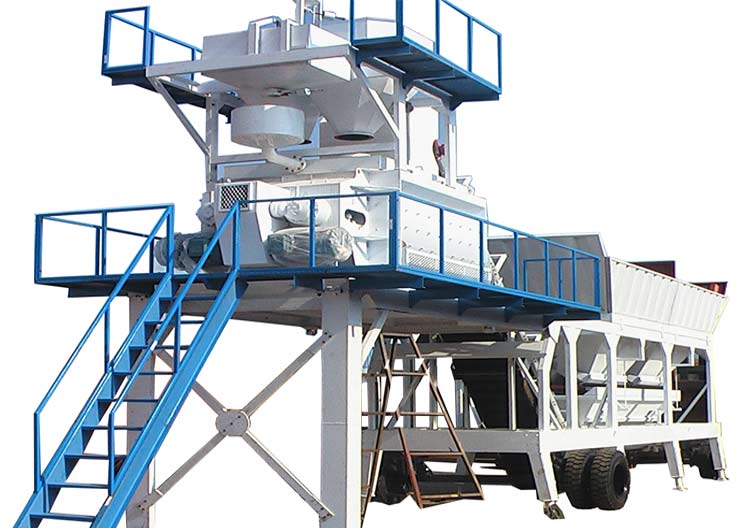

YHZS series is a trailer style mobile concrete mixing station, which concentrates the functions of collecting, accurate weighing, even mixing and quick transportation. And it’s easy to operate and move, which suitable for road, bridge, port, water and electricity construction.
To send inquiries, including feedback, requests for information, or questions, you may use our Feedback and Inquiries form below.
YHZS series is a trailer style mobile concrete mixing station, which concentrates the functions of collecting, accurate weighing, even mixing and quick transportation. And it’s easy to operate and move, which suitable for road, bridge, port, water and electricity construction.
Technical Parameters |
|||||||||
| Model |
Productivity (m³/h) |
Mixer | Grading Accuracy | Total Power (kW) |
Total Weight (t) |
Trailing Speed (km/h) |
Outside Tread (mm) |
Turning Radius (m) |
|
| Agg. | Powder | ||||||||
| YHZS25 | 25 | JS500 | ≤2% | ≤1% | 45 | 20 | 15 | 3200 | 9 |
| YHZS35 | 35 | JS750 | ≤2% | ≤1% | 60 | 22 | 15 | 3200 | 9 |
| YHZS50 | 50 | JS1000 | ≤2% | ≤1% | 70 | 25 | 15 | 3400 | 10 |
| *Note: The total power does not include the power of screw conveyor. | |||||||||
